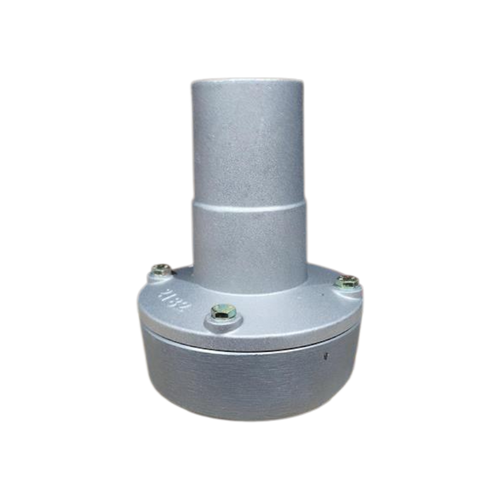

BAYCO 2" Pressure Relief Valve 15 PSI - Female

$98.92
(No reviews yet) Write a Review
SKU:
2182F/15
Description

Details

Applications

Designed specifically for use on tractor mounted air blowers. The 2182 air relief valves have a temperature compensated pressure relief setting to accommodate the high temperatures and dynamic air produced by the blower. If a system blockage were to occur, the valves are designed to vent to atmosphere once the valve pressure setting is achieved.

Construction

  • Aluminum anodized hard coat
  • White food grade silicone poppet and diaphragm

Features

  • High relieving capacity varies between 800 SCFM and 1700 SCFM depending upon the chosen set pressure.
  • Installed cup seal deters tampering
  • Anodized aluminum body reduces thread galling

Note

  • The popular pressure setting for truck mounted blowers is 20 PSI. Valves are available for other applications with temperature compensated pressure settings of between 3 PSI and 24 PSI. Customer should request set pressure at time of order.
  • The 2182 valve will relieve at the ordered set pressure at a temperature of 400°F / 204°C. At room temperature 73°F / 22°C the 2182 valve will relieve approximately 4 PSI higher than the ordered set pressure.
  • The product label shows the set relief pressure at the blow operating temperature, plus the relief pressure at 73°F / 22°C (for testing purposes). Depending on the blower type, amount of vibration and operating temperature a difference of observable set pressure may occur.
  • Example: 2182-18 is set to relieve at 18 PSI while at operating temperature. This same valve will test at 22 PSI while at room temperature on a test bench. Both set points are listed on the label.

Details

Applications

Designed specifically for use on tractor mounted air blowers. The 2182 air relief valves have a temperature compensated pressure relief setting to accommodate the high temperatures and dynamic air produced by the blower. If a system blockage were to occur, the valves are designed to vent to atmosphere once the valve pressure setting is achieved.

Construction

  • Aluminum anodized hard coat
  • White food grade silicone poppet and diaphragm

Features

  • High relieving capacity varies between 800 SCFM and 1700 SCFM depending upon the chosen set pressure.
  • Installed cup seal deters tampering
  • Anodized aluminum body reduces thread galling

Note

  • The popular pressure setting for truck mounted blowers is 20 PSI. Valves are available for other applications with temperature compensated pressure settings of between 3 PSI and 24 PSI. Customer should request set pressure at time of order.
  • The 2182 valve will relieve at the ordered set pressure at a temperature of 400°F / 204°C. At room temperature 73°F / 22°C the 2182 valve will relieve approximately 4 PSI higher than the ordered set pressure.
  • The product label shows the set relief pressure at the blow operating temperature, plus the relief pressure at 73°F / 22°C (for testing purposes). Depending on the blower type, amount of vibration and operating temperature a difference of observable set pressure may occur.
  • Example: 2182-18 is set to relieve at 18 PSI while at operating temperature. This same valve will test at 22 PSI while at room temperature on a test bench. Both set points are listed on the label.
