Available
Options
·
Custom lengths available upon request
Construction
·

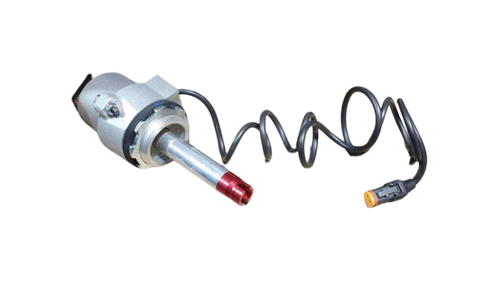

The FT151P series sensor housing contains
Plug-n-Play probe in a cast aluminum housing. The sensor housing has a 2"
NPT mounting thread, heavy duty stainless steel hardware, and FKM probe seal.
·
All screws and rings are heavy duty stainless
steel for easy assembly and long life.
Description
·
Housing, Probe & Harness Connector
Features
·
Housing with 7" Plug-n-Play overfill
detection probe, with Plug-n-Play harness connector
·
Overfill detection sensors are intended to
detect a pending overfill condition inside the fuel tank compartment. When they
are wetted (come in contact with the fuel) they signal the fuel loading rack to
close the fuel supply control valve, to prevent a spill of product.
·
Prewired and factory tested with Plug-n-Play
cabling and plugs, eliminates hours of manual crimped wire connections, and
removes the problems and worries associated with connection problems.
·
Trouble Free Probes: FloTech brand probes
incorporate a double elastomer design which seals and secures the sensitive
glass optic prism tip. The elastomer seals are flexible allowing thermal
expansion and resistance to steam cleaning and petroleum chemical attack.
Installation
·
Easy to install, just mount the housing into the
tank and plug the cables together.
·
Install into either a 2" NPT threaded port
or a 2-3/8" diameter tank opening using the gasket and locking nut
provided.
Includes
·
7" probe
Note
All FloTech™ electronics manufactured after January 1, 2015
are covered by our 5 year warranty.
WARNING: This product contains lead, a chemical known to the
State of California to cause cancer and birth defects or other reproductive
harm.
FT151
FLO Probe 2 Wire Optic 7" W/Holder
